Description
Built for Dekton, Techsize and Laminam Ultra-Compact Surfaces

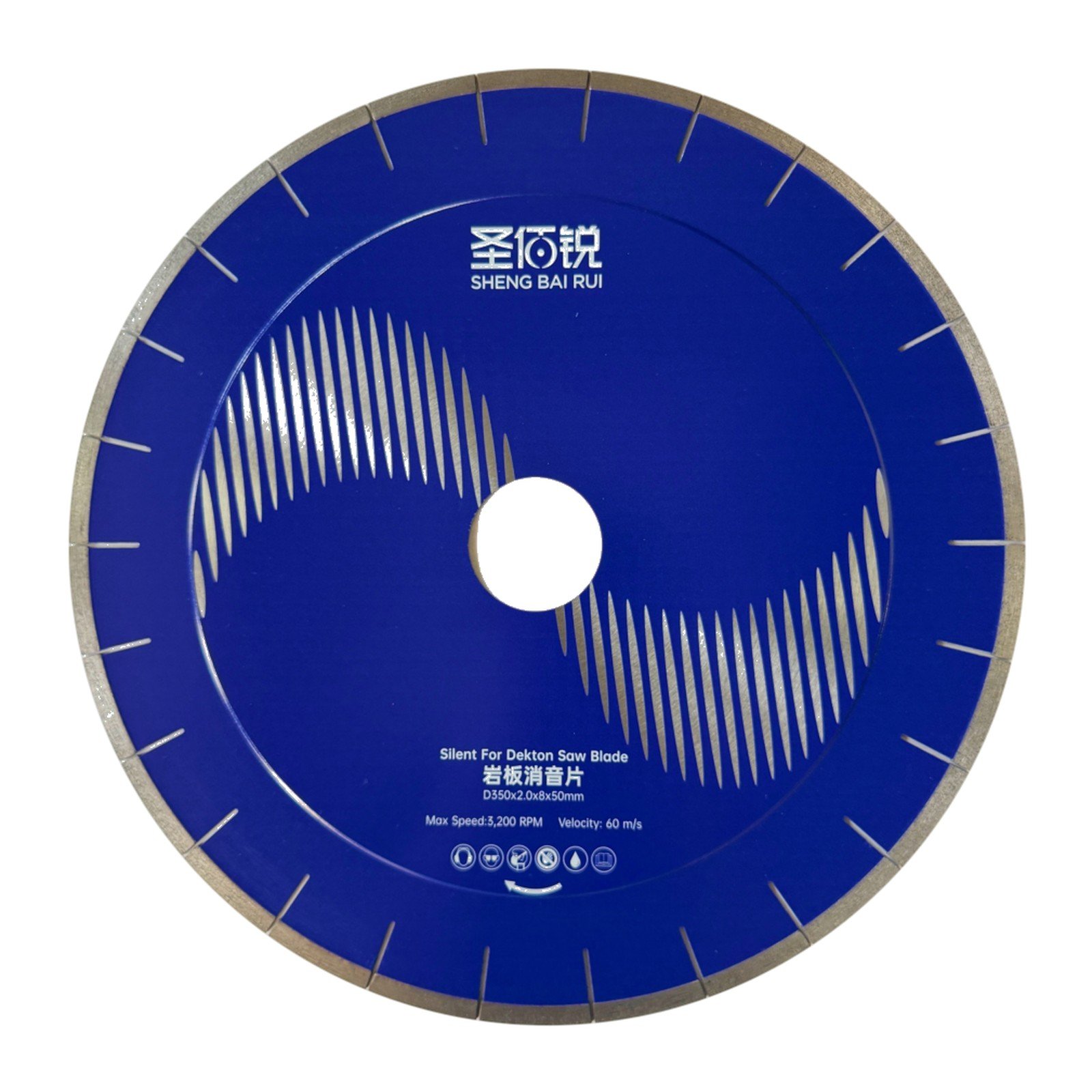

This 350 mm silent-core diamond saw blade is purpose-built for cutting ultra-compact surfaces — Dekton, porcelain slabs, Techsize and Laminam — on bridge-cutting machines. A high-frequency welded, double-step segment rim and a damped silent core keep the cut straight and the edge clean, so large-format slabs go from the crate to the installation without chipping, wandering or re-polishing.
Why this blade cuts ultra-compact slabs cleanly
- Silent core, less vibration. The damped steel body suppresses resonance on 350 mm cuts, which is where chipping on sintered and ultra-compact surfaces usually starts.
- High-frequency welded double-step segments. The welded rim holds its segment height under continuous production cutting, and the stepped segment profile opens the kerf progressively instead of hammering the edge.
- 26-tooth fine geometry, 2.0 mm segment. A narrow kerf and a dense tooth count give a smooth, low-load cut on hard, brittle slabs — fewer micro-cracks along the cut line.
- Wet cutting at 60 m/s, EN 13236 compliant. Rated to 3,200 RPM and 60 m/s peripheral speed for wet cutting, manufactured to the EN 13236 safety standard for diamond tools.
Specification
| Diameter | 350 mm (14″) |
| Segment height | 8 / 10 mm |
| Segment thickness / kerf | 2.0 / 2.2 mm |
| Steel core thickness | 2.4 / 1.65 mm |
| Number of segments | 26 T |
| Arbor | 60 / 50 mm |
| Manufacturing process | High-frequency welded |
| Core type | Silent core |
| Max. speed | 3,200 RPM / 60 m/s |
| Cutting condition | Wet cutting |
| Compatible equipment | Bridge-cutting machine |
| Working materials | Dekton, porcelain slabs, ultra-compact surfaces |
| Standard | EN 13236 |
Applications and compatible equipment
Recommended for wet cutting of Dekton, Techsize, Laminam and other ultra-compact or sintered slabs, large-format porcelain and porcelain countertops. Designed for bridge-cutting machines with a 50 mm or 60 mm arbor; run at the machine speed matched to the 3,200 RPM / 60 m/s rating and keep water flow on the full length of the cut.
OEM, samples and quotation
As a diamond tool manufacturer with our own production lines, we supply this Dekton blade with OEM branding, custom arbor sizes and export packing. MOQ, lead time and FOB/CIF pricing are confirmed against your slab thickness, machine and annual volume — send your requirement through the quote form and our team will come back with a specification-matched quotation.
Dekton®, Techsize® and Laminam® are trademarks of their respective owners. They are referenced here only to describe material compatibility. Hubei St. Bairui Diamond Tools Co., Ltd. is an independent diamond tool manufacturer and is not affiliated with, endorsed by or sponsored by these companies.
